Precision alignment designed for everyday welding, fabrication & assembly.
PATENT PENDING

Built for professionals who demand repeatability, clean welds and fast setup, the SCAMP Pipe Welding Jig locks your workpiece in place with laser-cut 6061-T6 aluminum and precision V-blocks. It’s engineered to give you solid alignment and reliable fit-up whether you’re in the shop or in the field.

Features

• Durable Construction — Crafted from 6061-T6 aluminum to stand up under heavy use.

• Optimized Lightweight Design — Cut-out pattern reduces weight but retains rigidity and stability.

• Flexible Setup — Multiple mounting points and adjustable brackets accommodate many pipe diameters and configurations.

• Precise Fit-Up — Maintains pipe joint alignment with minimal gap for stronger welds and less rework.

• Made in the USA — Built with the quality and integrity you expect from a Dale Hermann tool.

Why Fabricators Trust SCAMP

• Eliminates guess-work in setup and alignment.

• Saves time during pipe-to-pipe, pipe-to-plate and custom fixture welds.

• Performs both in shop environments and demanding field conditions.

• Includes full kit option (jig + vee-blocks) or frame-only variant for flexibility.

Specifications

• Material: 6061-T6 aluminum body, stainless hardware.

• Includes:
  • Kit variant – SCAMP frame + 4 precision vee blocks
  • Frame-only variant – SCAMP frame with hardware (vee blocks sold separately)

• Applications:
  Pipe fabrication • Pressure vessels • Structural pipe systems • Custom fixtures and assemblies

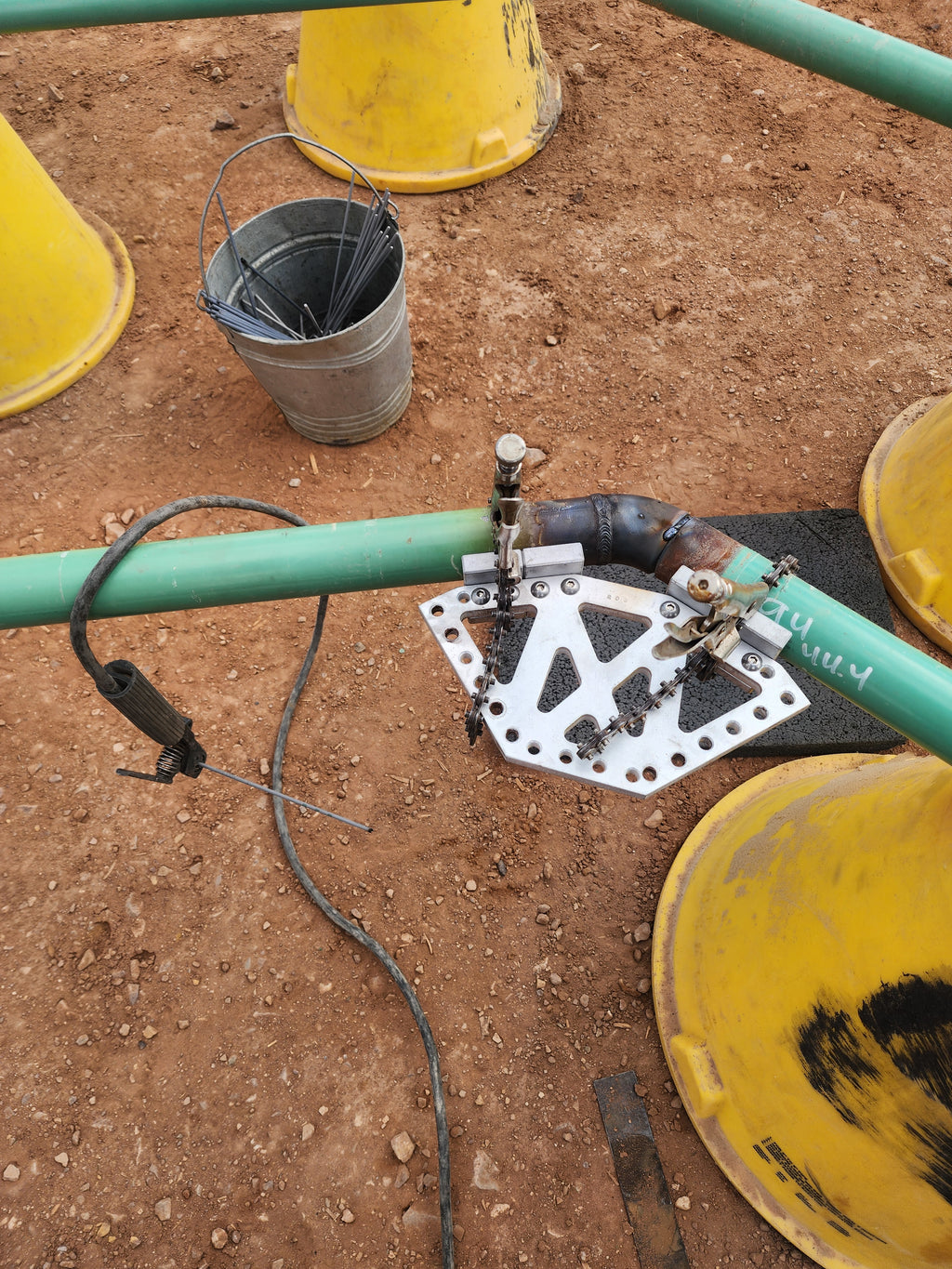

In the Field

From pipe racks and structural weld-up to pressure vessel spools and custom assemblies, the SCAMP jig delivers the reliable alignment, faster setup and clean welds professional fabricators count on each day.

✅ Ready to level up your fit-up, reduce setup time and weld with confidence?
Choose the SCAMP Pipe Welding Jig + Vee Blocks.
